Ceiling Sensor Locator Loop

Installing ceiling sensors

The following symbol designates ceiling sensor loops on the floor plan.

Termination

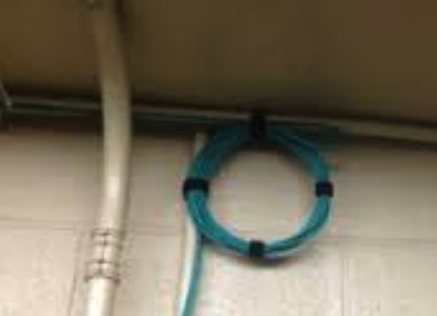

These drops are terminated into RJ-45 jacks and left in a service loop above the ceiling panels, as shown below.

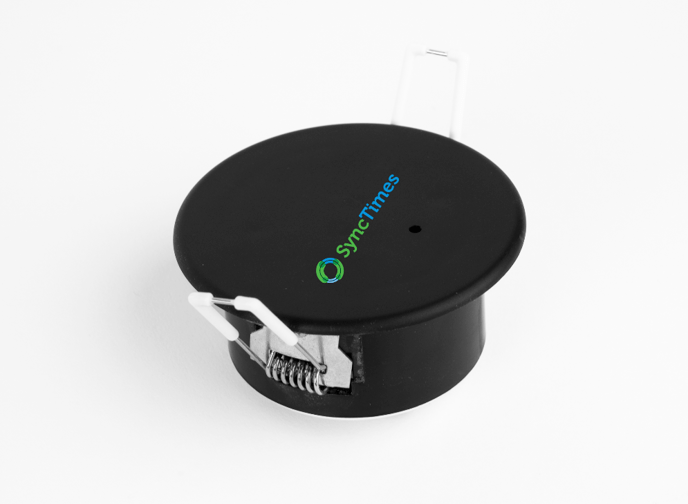

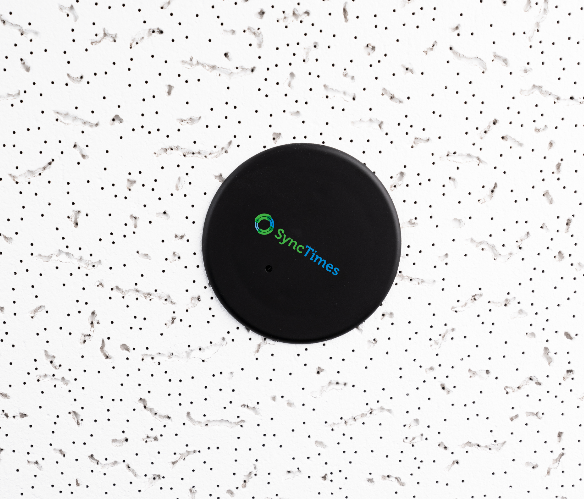

Stat provides small nodes (ceiling sensors) for locating, which are powered using this service loop.
