Options for providing the Stat system with internet access.
Requirements
- Minimum speeds: 20Mbps down, 10Mbps up
- Preferred speeds: 50Mbps down, 25Mbps up
- Stat network equipment and devices are cloud-managed. No public ports need to be accessible from outside the network.
- Stat will handle DHCP for all Stat network devices; the connected modem (if applicable) should not function as a firewall or router
- Fill out this form(***fix page) when the network connection is complete for the Stat site
Option 1: Direct to Dedicated ISP Circuit
This is the preferred method. Stat connects directly to a new ISP circuit, either with an available static public IP address, or with DHCP. Client provides Stat with applicable public IP address, gateway, and mask. This method is completely isolated from client networks.
Option 2: Connect to Client's ISP Circuit
Stat connects to an existing ISP with an available static public IP address via a client switch or multiple ports from the modem. Client provides Stat with applicable public IP address, gateway, and mask.

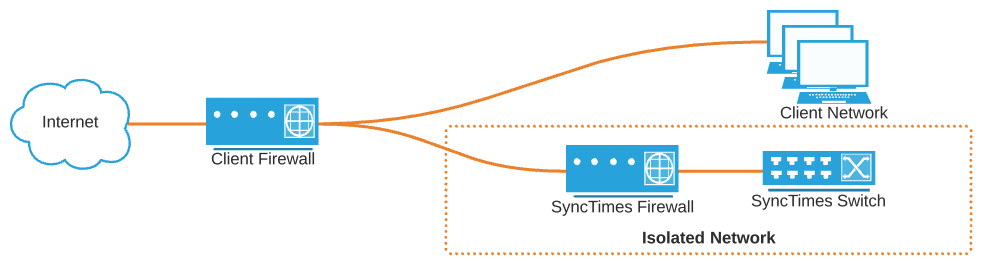

Options 3: Isolated Network within Client Network
Stat connects within the client firewall. Client provides Stat with applicable connection information, including Stat router’s WAN IP address, gateway, and mask.
