      EHR Mapping

      Connect your EHR to Stat through the EHR mapping section in the Admin Console

      Mapping Departments

      1. Navigate to "EHR Mapping" in the Stat Admin Console.

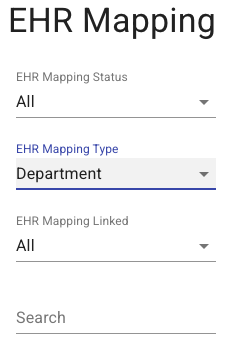

      2. Filter all available mapping types to "Department".



      3. Include/Exclude departments as appropriate.

      Make sure to "Include" the department.

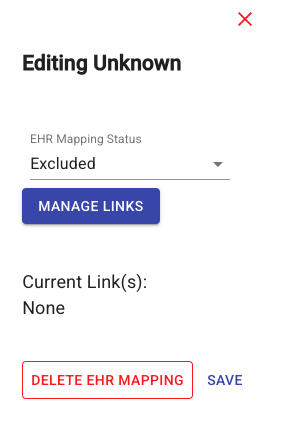

      4. Click "Manage Links"

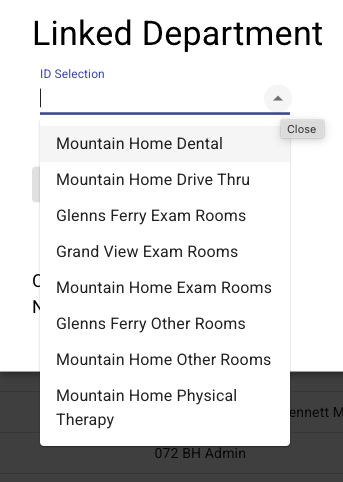

      5. Search for the corresponding department.

      6. Select "Create Link".

      Use the "Is Default" checkbox if the most patients should be routed to this department.
      7. Click "Save"

      Note: Stat may have more departments than the EHR. This happens when health centers want to separate their existing departments into sub-departments. (i.e., One site has a different department for each hallway or pod and/or sub-departments, including specialties like OB/GYN and Peds, etc.).

      When this happens, check to see which rooms and corresponding sub-department the patient's provider is assigned to and send the patient to the corresponding sub-department waiting room.

      If a provider is not assigned to a room, their patients will appear in the default department waiting room.

      Choose “is default” for the primary department.

      Appointment Status

      Include or exclude appointment statuses. Make sure to clearly understand which of their appointment statues should trigger a "checked-in" and "checked-out" patient etc.

      Appointment Type

      Include or exclude the appointment type.

      Provider Resource

      Providers must be added in Stat before this step can be completed.

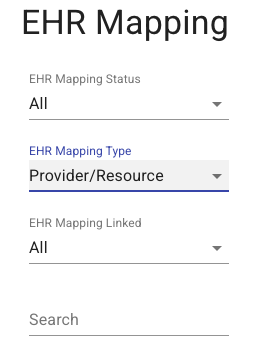

      1. Filter the “Mapping Type” by “Provider/Resource”

      2. Click "Manage Links".

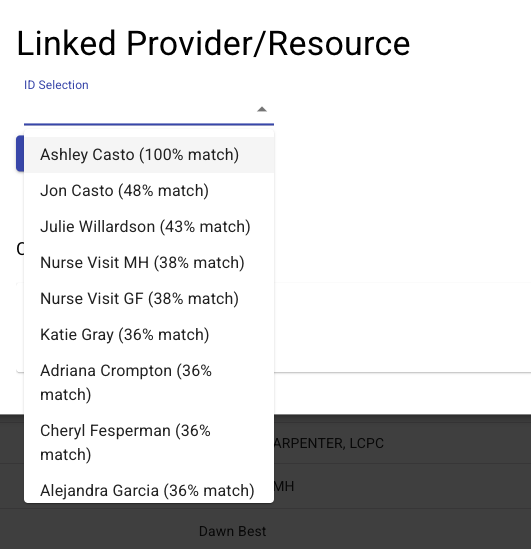

      3. Search for the name of the provider
      4. Click “Create Link”
      5. Save changes
      Locking Providers to Departments.

      When provider departments are generally permanent, use the User console in the Admin console in Stat to lock the user to that department.

      Nurse or Lab Visits

      When health centers want to display "Nurse Visit" or "Lab Visit" etc. in the waiting room follow these steps:

      1. The customer creates that “Provider Resource” in their EHR
      2. A corresponding user is added in Stat as a “Provider”.

      Exclude Providers

      Exclude providers when

      1.  Their site isn't actively using Stat and they won't 'float' to the active site(s)
      2.  Their specialty doesn't need to appear in the waiting room. (i.e., behavioral health appointments don't need to appear in the medical waiting room.)
